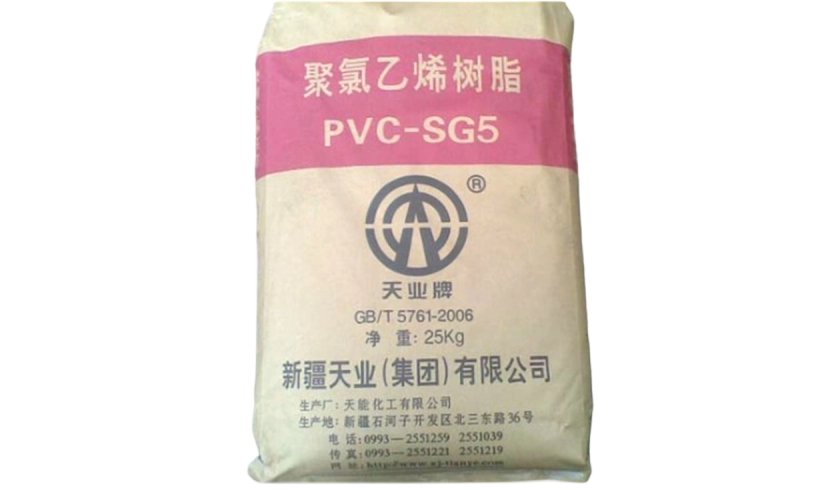

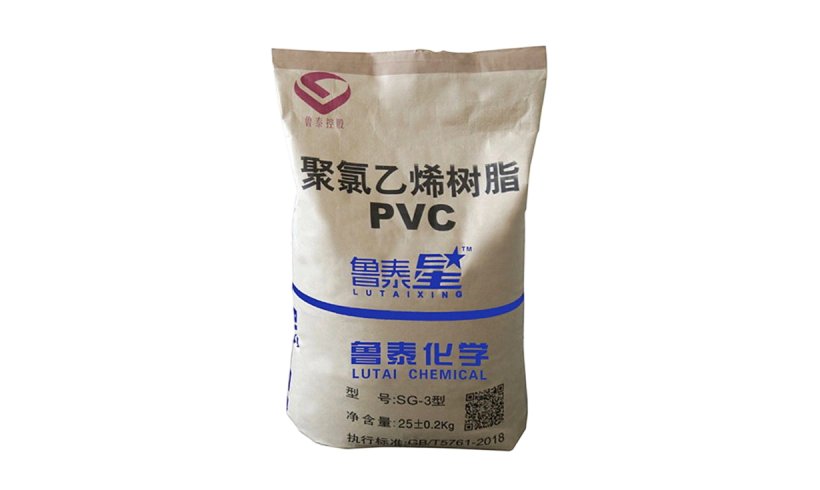

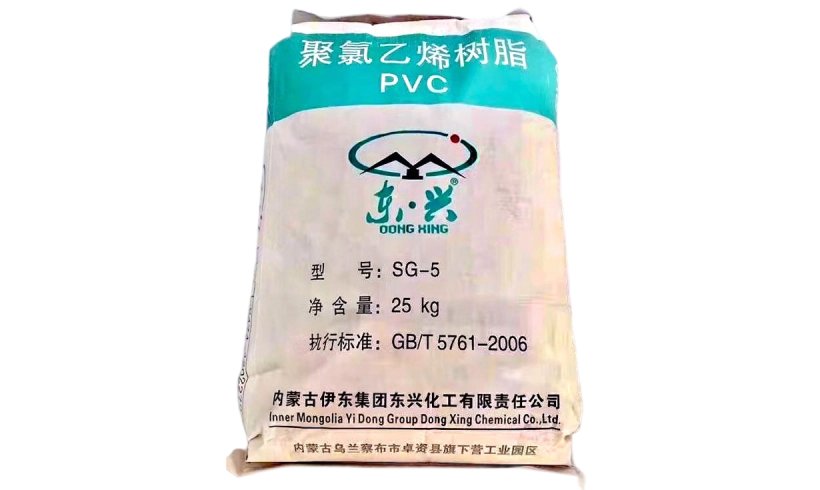

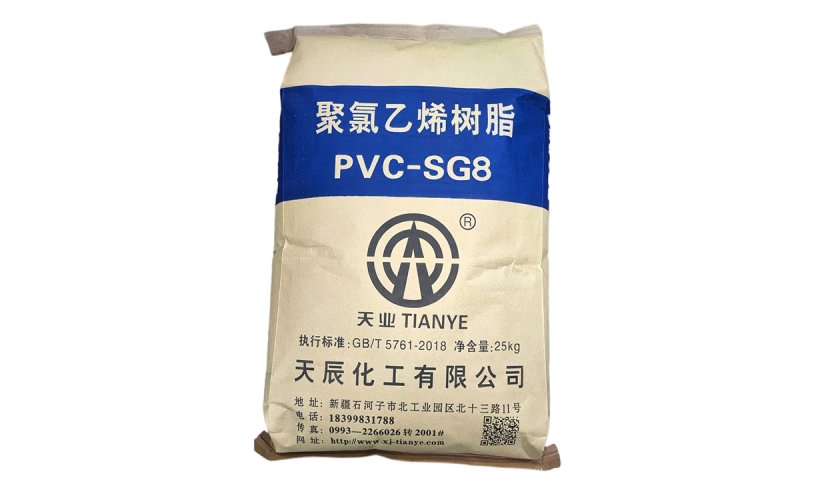

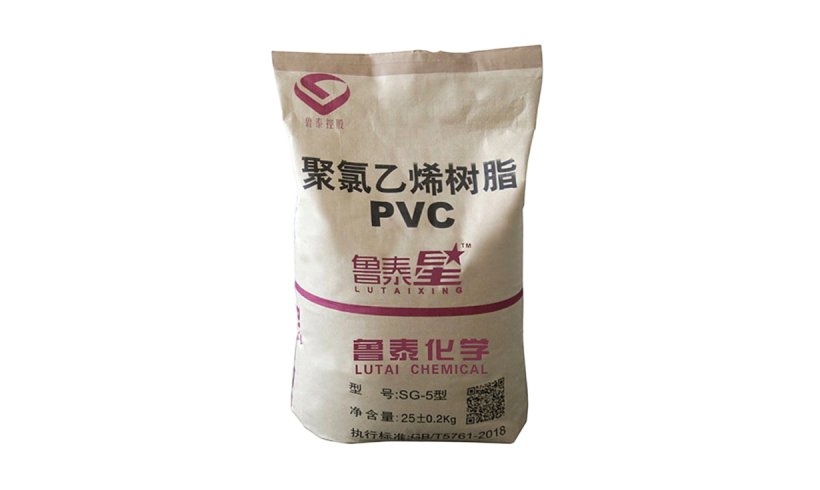

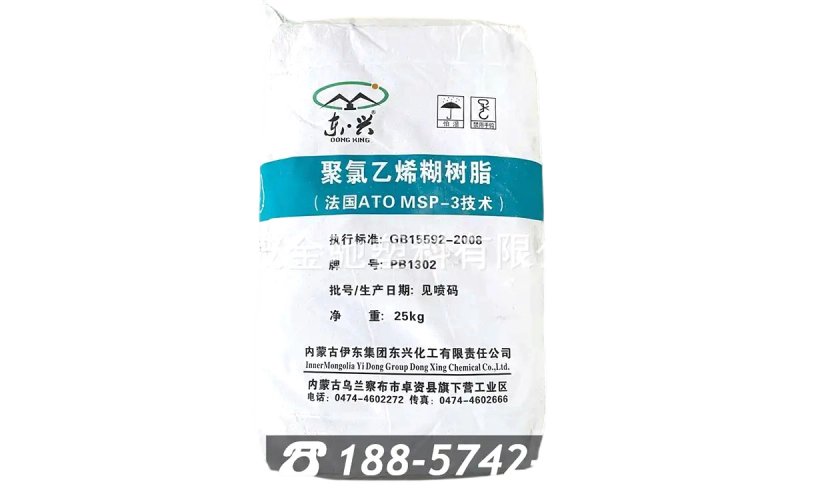

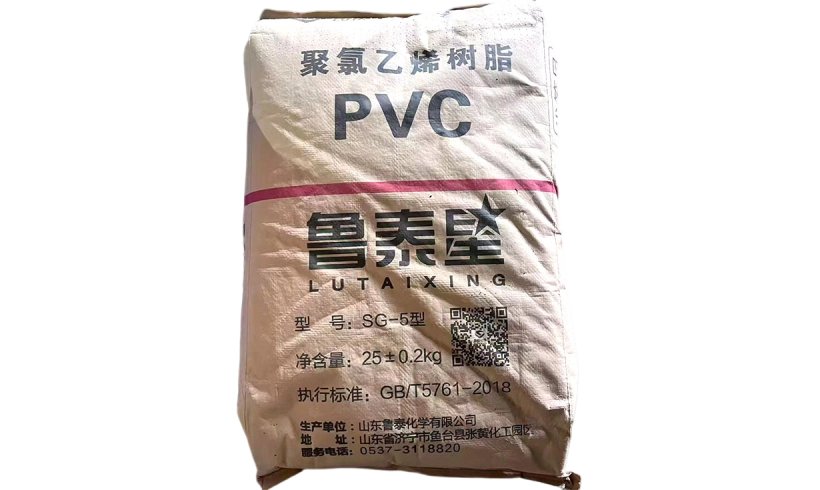

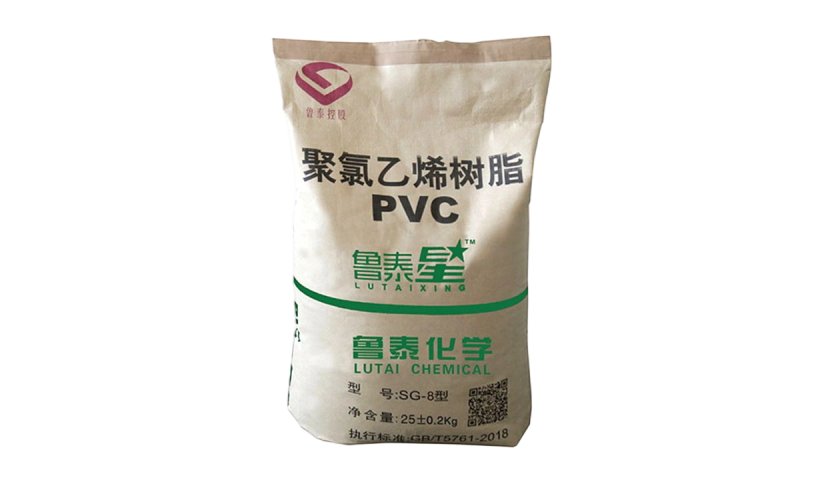

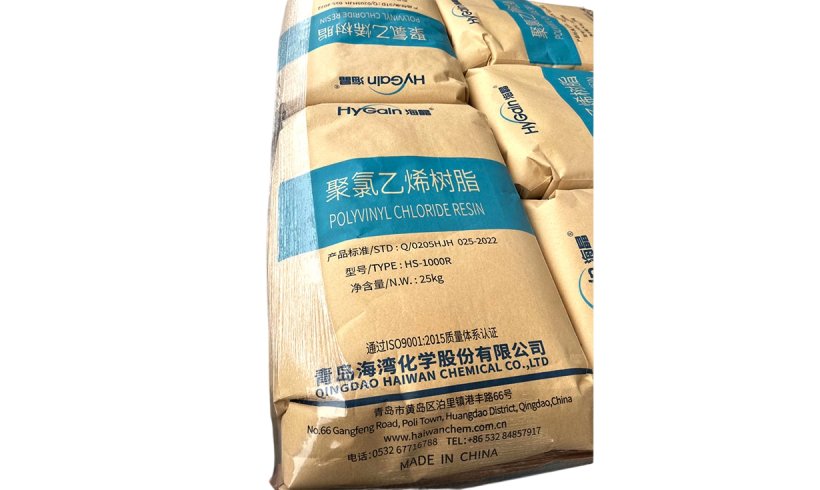

Polyvinyl chloride resin

PVC resin, also known as polyvinyl chloride resin, is a white powder-like thermoplastic synthetic polymer formed by the polymerization of vinyl chloride monomers. It is one of the most produced plastic varieties globally, featuring low cost, corrosion resistance, and good insulation properties. It is widely used in pipes, films, artificial leather, and cable insulation sleeves.

(0)Reviews

Inquire now

Share to:

Product Description
Technical parameters
Inquire immediately
Reviews
Related products

Product Description

Key Characteristics and Classification

1. Appearance: Amorphous white powder, odorless and tasteless.

2. Physical Properties: Density approximately 1.4, high mechanical strength, and natural flame retardancy.

3. Poor Heat Resistance: Decomposes easily above 100°C or when exposed to long-term sunlight, releasing hydrogen chloride.

4. Hardness and Softness Classification: Divided into hard PVC (without or with little plasticizers added) and soft PVC (with a large amount of plasticizers added).

Technical parameters

Ethylene method Quality specification
Iterm		DG-1000S Specification	DG-1000S Result	HS 1000R Specification	HS 1000R Result
K value		66-68	67	66-68	66
Impurity particle number		60 MAX	3	16max.	10
Volatile matter %		0.4% MAX	0.17%	0.40max.	0.21
Bulk density g/ml		0.51-0.57	0.55	0.53min.	0.56
Fish eyes number/100cm2		60 MAX	2	20max.	5
100g resin plasticizer absorbtion, g		20 MIN	26	20min.	26
Whiteness(after 160℃10min)		70MIN	82	80min.	82
Residual VCM ppm		10 MAX	0.2	1max.	0.45
Sieve ratio%	0.25mm	/	/	1.6max.	0.3
	0.063mm	/	/	97min.	99.4
Viscosity(ml/g)		/	/	107-118	109
Average Polymerization Degree		981-1080	1027	/	/
250μm Particle size %		1.6%MAX	0.04%	/	/
Conclusion		Qualified
